Rotary dies

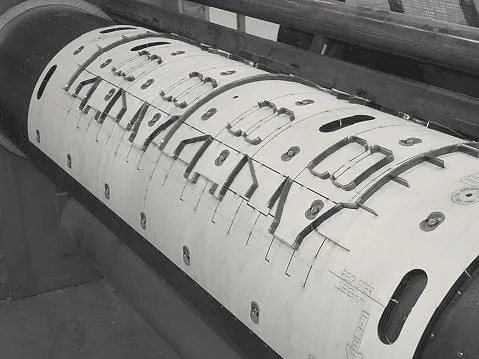

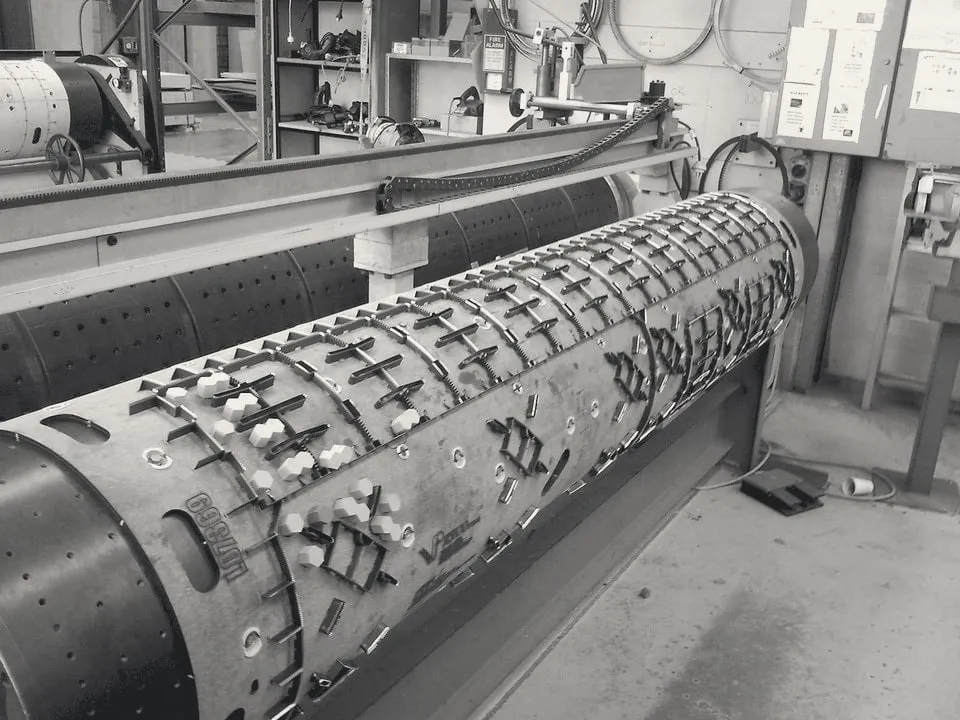

A curved plywood shell, laser cut and set with steel cutting and creasing rules. It fits the cylinder of a rotary die-cutter and cuts the sheet as it runs through, which makes it the die for long runs.
More about rotary diesLaser-cut dies, made in Wiri, Auckland
Rotary and flat forme dies for the printing industry
Laser cut to your drawing in our Wiri workshop, for 100% accuracy, quality and service.
Drawings to orders@rycodies.co.nz
Ryco Dies
- Product
- Rotary and flat forme dies
- Method
- Laser cut
- For
- The printing industry
- Made in
- Wiri, Auckland
- Phone
- 09 269 0090
- Drawings to
- orders@rycodies.co.nz
What we make
Two kinds of die, both cut by laser
Which one you need depends on the machine it runs on. Not sure? Send the drawing and tell us the press.
Flat forme dies

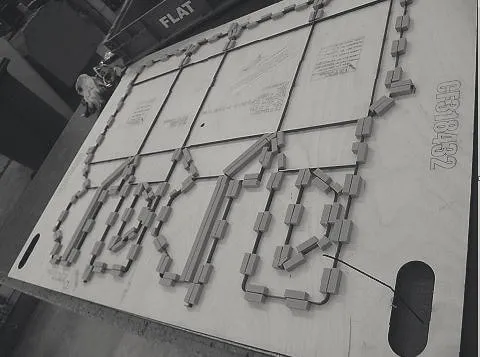

A flat plywood board, laser cut to hold steel cutting, creasing and perforating rules, for platen and flatbed die-cutters. Rubber along the rules pushes the sheet clear after each cut.
More about flat forme diesAround the die
And the tooling that goes with it
Auto platen dies

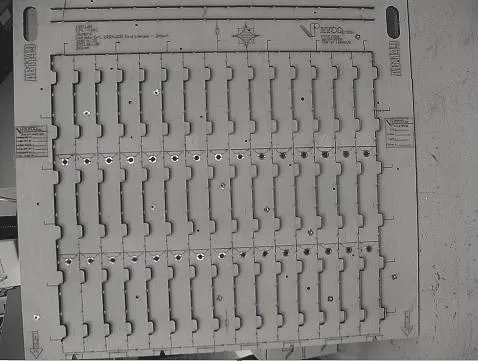

Flat forme dies made for automatic platen die-cutters.
Die and stripping

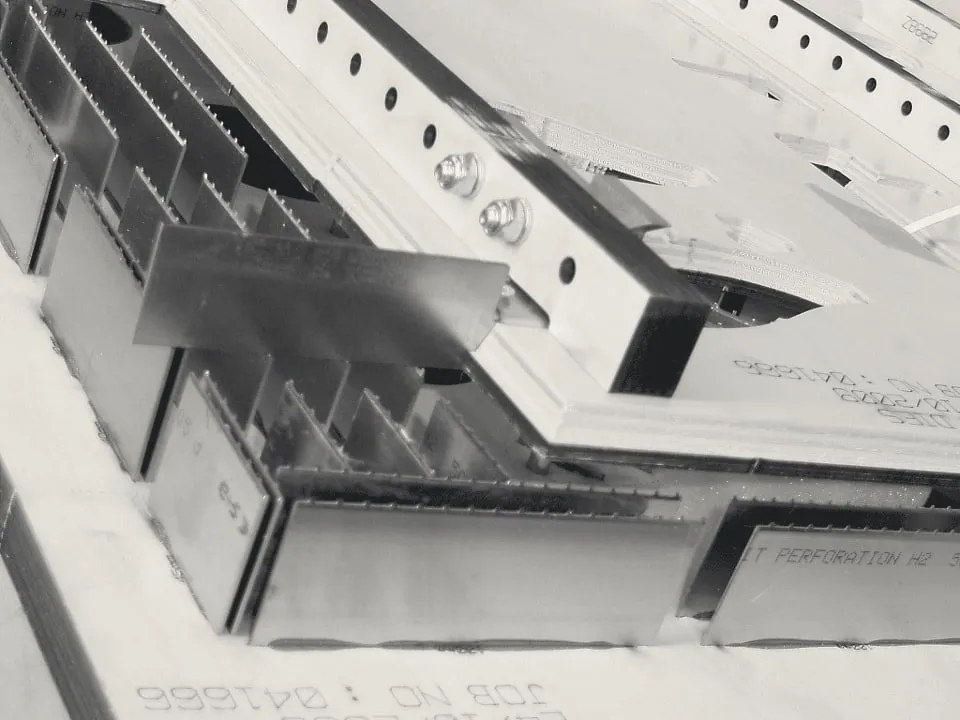

A die with its stripping tooling, which pushes the waste out of each cut sheet.
Phenolic counters

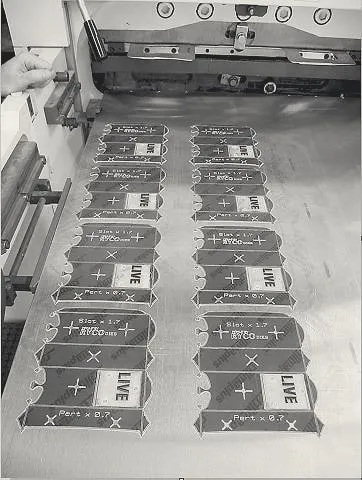

Counter plates that sit opposite the creasing rules, grooved so each crease folds cleanly.
Milled stainless steel

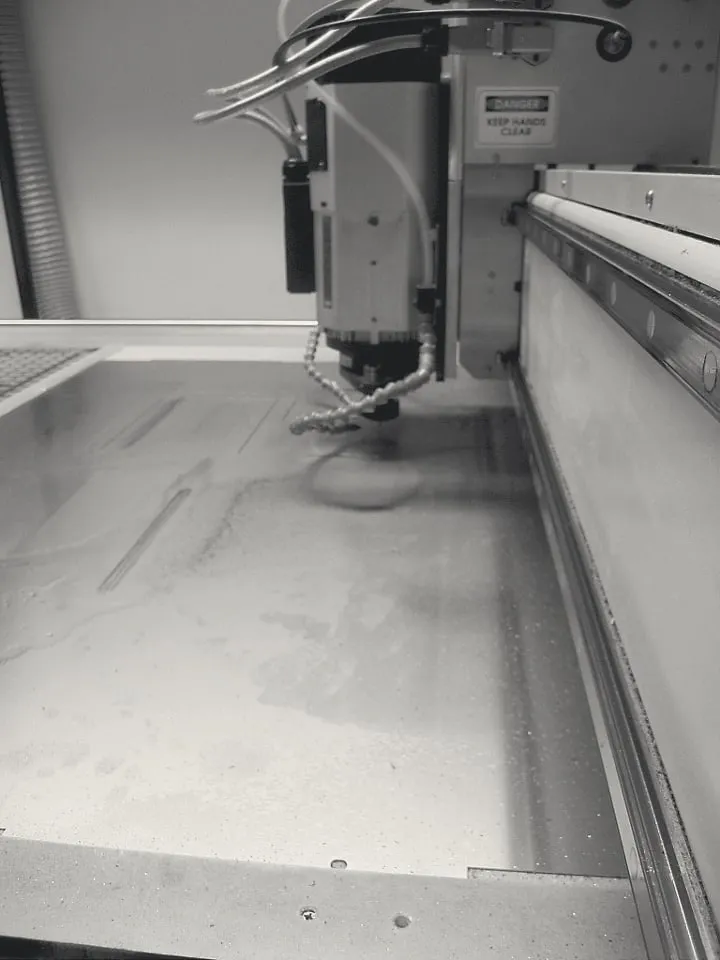

Stainless steel, milled to your drawing.
How to order
Send us your die drawing
Contact us now and see how we can assist with your die requirements.
No drawing yet? Ask us with the enquiry form.
- 01
Email the drawing
Send it to orders@rycodies.co.nz.
- 02
Tell us about the job
The machine it runs on, the material, how many you need, and when.
- 03
Talk it through
A question about the drawing or the job? Call the workshop on 09 269 0090.
